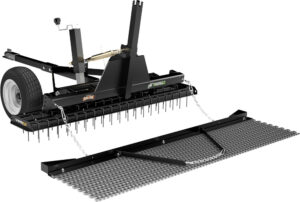

Professional Infield Groomer
The Infield Rascal Pro is the ultimate infield surfaces groomer, that produces amazing results for daily grooming and occasional light renovation work. The Infield Rascal Pro features two revolutionary patent-pending technologies that are a complete re-imagining of infield surface maintenance, making many traditional methods obsolete. This is accomplished with ABI’s VibraFlex attachment for daily grooming and Profile Blade attachment for vegetation removal, light renovation and de-compaction work. The patented Wheel Lift System, with huge stabilizing wheels, enables the operator to easily transport the tool and have complete control over grooming depth and aggressiveness. This system may even be controlled from the seat of the tow vehicle with the available electric actuator. Combine these features with the ability to quickly swap between available innovative finishing attachments, such as the Rigid Drag Mat, Coco Drag Mat, XD Flexible Drag Mat and Fine Finish Broom, and the Infield Rascal Pro can master any infield surface challenge with ease.

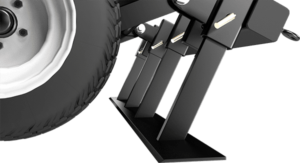

Profile Blade™ Attachment
For seasonal renovation work, the patent-pending Profile Blade attachment yields unparalleled de-compaction results slicing the complete profile of the infield material from a 1/2 inch to 3 inches beneath the infield surface. This is accomplished without displacing the material, reducing the need to laser grade after this work is complete. Occasionally de-compacting the infield surface encourages a quick draining and consistent playing ball field. Profile Blades also have the ability to ‘cut’ weeds and grass at the root-level to remove creeping grasses from infields and warning tracks as well as remove “lip” build-up along the turf edge.

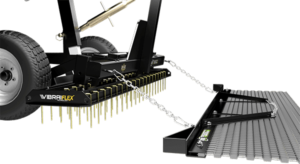

Quick-Swap Finishing Attachments – Rigid Drag Mat
The Infield Rascal’s Quick-Swap finishing attachments make it easier than ever to achieve just the right finish, no matter the infield surface condition and with no tools required. The standard finishing attachment is a custom designed 6′ wide Rigid Drag Mat with integrated leveling bar. This rigid drag mat is the all-purpose attachment that will float material to fill low areas and drag the surface ready for play. Because of it’s rigid design, this drag mat levels and smooths WITHOUT following small contours of the ground ensuring a level playing surface. The innovative integrated leveling bar floats materials from high areas into low areas, is a nearly indestructible tow bar, and allows the steel mesh to be replaced once worn. Other available finishing attachments include a fine finish broom, coco drag mat, and an extreme duty flexible drag mat.

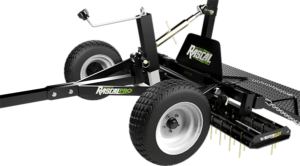

Patented Wheel Lift System
The patented Wheel-Lift System provides precision control over the Infield Rascal and is operated either with a manual jack or the available electric actuator. This system raises and lowers the Rascal chassis for easy transport around the facility, but most importantly, it holds underbelly attachments at a consistent ground-penetration depth during operation. The available electric actuator enables on-the-fly control of the Rascal from the seat of the tow vehicle. The actuator is a huge time saver when used during renovation work or for multi-field facilities. The Rascal rides on large 16.5 inch tall by 8 inch wide tires to ensure consistent grooming results on the field and efficient transport off the field. The large wheels additionally stabilize the Infield Rascal from sinking into soft material or pitching side-to-side ensuring consistency of grooming depth, the width of the unit, especially when maneuvering tight turns. These are high quality wheels with replaceable hubs, spindles, and bearings for long service life.

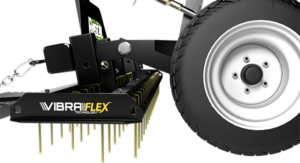

VibraFlex™ Groomer Attachment
For daily grooming, the Patent-pending VibraFlex attachment is a complete re-imagining of infield grooming. Evenly staggered U-pins transfer vibration & flex from front to back, dancing along the surface, shattering surface-tension to properly groom any infield. The VibraFlex groomer is available in two models for different infield soil formulations, facility type, and levels of play. The 1/8 inch, 1/4 inch or 3/8 inch pins are easy to replace or exchange and are mounted at an angle to create four staggered rows to best suit surface conditions. The standard model 3800 is for recreational fields with four staggered rows creating 3/4″ spacing with 1/4″ or 3/8″ U-shaped VibraFlex pins. The available model 5800 is for professional fields with four staggered rows creating 1/2″ spacing with 1/8″ or 1/4″ U-shaped VibraFlex pins.

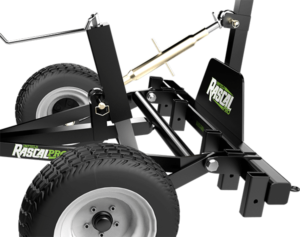

Welded 2.5in x 2.5in Tube Steel Frame
At the core of the Infield Rascal® Pro is a welded main frame built upon 2.5″ x 2.5″ tube steel. The frame is fully welded, except at pivoting joints, for rugged and long lasting service life. This is truly a commercial grade piece of equipment built to take the abuse of hours of daily use.

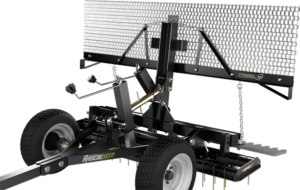

Finishing Attachments Carrier
The Infield Rascal®’s Finishing Attachments Carrier holds the optional drag mats and broom off the ground for easy transport. These options include a Rigid Drag Mat, Coco Drag Mat, XD Drag Mat & Fine Finish Broom. This is especially handy in multi field complexes.

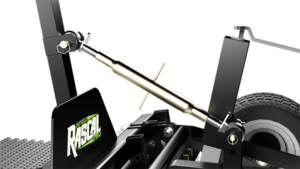

Ground Contact Adjustment
The turn-knuckle on the top of the Infield Rascal® is designed to enable adjustment over the angle in which the ground engaging components come in contact with the ground. This adjustment allows the operator to flatten out the VibraFlex™ groomer for proper operation or adjust the pitch of the profile blades. This feature is also a very handy, no tools required, way to adjust for varying hitch heights when using multiple tow vehicles.
The ABI Coco Drag Mat with Leveling Bar is 6′ wide and 2′ long and is ideal for adding a fine finish to an infield skin even in high moisture conditions. The innovative integrated leveling bar floats materials from high areas into low areas, is a nearly indestructible tow bar (for use behind a tow vehicle) and allows the coco matting to be replaced once worn.
The Fine Finish Broom is 7′ wide and offers 3 rows of bristles. The mounting arms are adjustable to set the exact working angle desired, yet the broom will float independently from the Infield Rascal® frame. The broom has an ideal weight for the perfect amount of down pressure needed for beautiful performance. If the surface is already clod-free and level, then the Fine Finish Broom creates the best finish in both high and low moisture conditions. The 3 ideally spaced rows of easily replaceable bristles, will help to float a small amount of material into low areas and finish the infield in a pristine “major-league” manner.
This industrial grade actuator is powerful, rugged and finely tuned for easy operation of the Rascal from the seat of the tow vehicle. It is most commonly used to lift the tool for transport, raise the tool for tight turns over areas you do not want to disturb, to cut-&-fill grade material, and to set the depth of the VibraFlex™ ripping teeth or profile blades. While grading is possible without additional options, we HIGHLY recommend this electric actuator to control the wheel-lift system from the seat of the tow vehicle. This option greatly enhances the effectiveness and efficiency of the Rascal for “cut-&-fill” grading and spreading applications. It includes all hardware and wireing needed to attach to a 12v battery and has a very convenient handlebar mounted controller. This controller enables easy operation while keeping both hands on the handlebars of the quad, ATV or UTV. An optional wireless remote controller is also available. A manual crank jack is standard.
Wireless Remote For Actuator
The wireless remote upgrade works with any ABI actuator purchased after June 1st 2013. Now you can control the Rascal’s wheel-lift-system from almost anywhere. Our wireless system has 2 key chain, all weather sealed, remote controllers for use with multiple tow vehicles or multiple operators at the same job site. This complete wireless kit offers easy plug-&-play installation.
36-Month Commercial Warranty
At the core of the Infield Rascal MVP is commercial-grade construction and superior craftsmanship. This chassis is designed for daily use and is built tough enough to take on the demands of all sports turf facilities. And just to prove how much we believe in the quality of this tool, ABI backs it with a 36-month limited warranty. This warranty covers both consumer and commercial use and is the longest infield groomer warranty in the sports turf industry! See warranty documentation for details.
Manufactured Right Here
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
