OVERVIEW

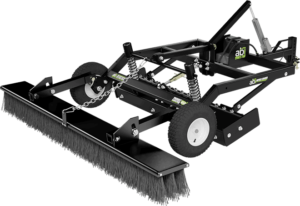

Infield Grader for the Mower
The ABI Infield Grader is a performance oriented, yet cost effective, infield maintenance groomer designed for use behind a riding mower or zero-turn with a rear hitch. With an ABI Infield Grader, every baseball and softball league can now afford safer and more playable infields.
EASE OF USE
Portability
Travel time between fields is a breeze with the set of wheels & finish attachment carrier. The wireless actuator provides the ability to raise the tool out of play allowing for ground clearance to move from field to field. Roll up your mat and place it in the carrier or watch the broom raise off the ground as you raise the tool with the actuator.
Wireless Actuator
The ABI Infield Grader comes standard with an electric actuator. The ABI actuator is commercial grade, has an 8″ stroke, and is weather sealed for longevity. Using the wireless electric actuator’s downward force on the springs and grading box, the hitch of the Infield Grader tops out against the mower using the weight of the operator and mower to put applied force to the loosening and grading action. The actuator can be connected to your mowers battery or to an onboard battery. (The onboard battery is not included).
Grader Box 48in Loosening Depth 1.75in Base Unit Weight 233lbs
FEATURES
ABI Sports Turf is an infield maintenance equipment manufacturer known for innovative designs specifically crafted for infields. This innovation enables the ABI Infield Grader to reduce surface compaction, evenly grade low and high areas, and properly groom infields achieving the playable results teams need all with one tool.
ABI Infield Grader Features
The ABI Infield Grader’s innovative design is packed with features specifically crafted for baseball and softball infields. When ABI’s engineers were challenged with finding a way to enable a lawn mower to get real infield grading work done, they knew that overcoming the natural traction limitations of mowers would be a struggle. But after much research and development, ABI invented patent-pending “Controlled Force” technology to answer this challenge.
On-The-Go Weight Control
In grading, the heavier the implement, the better the grading result. However, when the tow vehicle is a traction limited mower, too much weight will cause the operator to get stuck with spinning tires. So, instead of adding static dead weight via cinder blocks, a water tank, or other common methods, “Controlled Force” technology adds active “On-The-Go Weight Control”, which enables the operator to transfer weight from the tow vehicle to the Infield Grader as more or less weight is needed for the job!

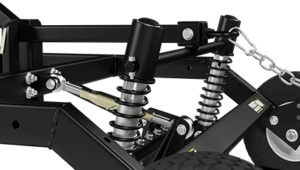

No Slip Spring Technology
Utilized in combination with On-The-Go Weight Control, the No Slip Spring Technology may either be locked out for precision grading within an 1/8, or allowed to retract making general grading an easy process for league volunteers. This spring retraction allows the mid-mount attachments to slightly release under higher than average pressure so the mower does not lose traction. The operator may start a job with spring retraction enabled, then end the job with the springs locked for the final finish.
MID-MOUNT ATTACHMENTS

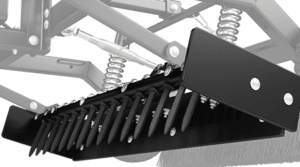

Mini-Box Grader
With wireless control of the electric actuator powered “Controlled Force Technology”, the operator can quickly and effectively use the mini-box to spread and level loosened material and collect loose debris & rocks with precision and ease. It can effectively reset the grade around home plate, sliding areas, along basepaths, and warning tracks.

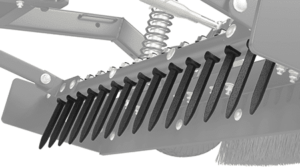

Loosening Teeth
The loosening teeth ensure the surface has been properly decompacted to level. The adjustable and replaceable teeth can loosen the infield skin from 0″ up to 1-3/4″ deep depending on the application and conditions. The operator may lock the depth in place and remove every other tooth as desired to accommodate material flow.

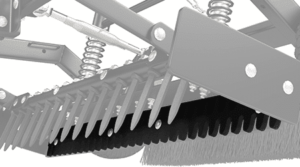

Reversible Blade Edge
The 1/2″ thick grading blade is shipping with a smooth edge for precision grading, however it may be flipped over to a serrated edge for more aggressive action. The smooth edge is best for infield mix leveling, whereas the serrated edge is best for gravel and other more coarse materials.
REAR ATTACHMENTS

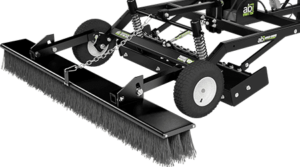

6′ Finish Broom
The available Fine Finish Broom is 6′ wide and offers 3 replaceable rows of bristles. The Fine Finish Broom creates a pristine finish in both high and low moisture conditions. The broom can also raise and lower with the grader box, there’s no need to manually lift it off the ground for transport.

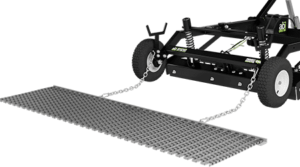

6′ XD Dragmat
The XD Flexible Steel Mesh Drag Mat is 6′ wide by 1.5′ long and is the most extreme duty drag mat on the market. It is ideal to finish and reset the surface to be ready for play after maintenance work. The steel mesh is made of extremely thick rust resistant galvanized steel. The rods are an impressive 6 Gauge and the ends are welded to protect the edges from fraying as it hits bases, fencing and other obstacles.
ADVANTAGES
36-Month Commercial Warranty
At the core of the Infield Rascal MVP is commercial-grade construction and superior craftsmanship. This chassis is designed for daily use and is built tough enough to take on the demands of all sports turf facilities. And just to prove how much we believe in the quality of this tool, ABI backs it with a 36-month limited warranty. This warranty covers both consumer and commercial use and is the longest infield groomer warranty in the sports turf industry! See warranty documentation for details.
Manufactured Right Here
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
